1 Baby & 2 Baby
Brand : Shenzhen Medworld

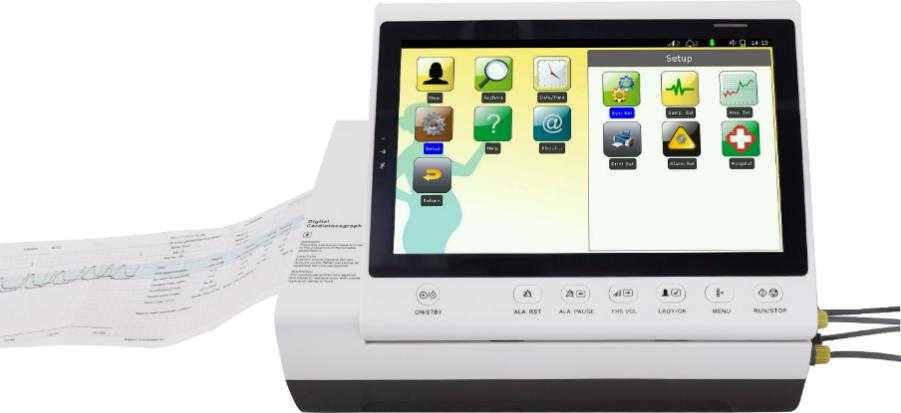

Model : FM100/200

Description:
 Cardiotocography (CTG) is a continuous recording of the fetal heart rate obtained via an
ultrasound transducer placed on the mother's abdomen. CTG is widely used in pregnancy as a
method of assessing fetal well‐being, predominantly in pregnancies with increased risk of
complications.

TECHNICAL SPECIFICATIONS:
 10.2'' LED touch-screen,90° rotation screen.
 Twins Probe Available
 CTG waveforms can be frozen
 Thermal printer with 112mm, synchronization print
 Auto interpretation and NST Grade.
 High performance waterproof Probe is equipped

 Up to 500 patients data can be saved,
 USB can be supported.
 Data transmitting to PC via USB.
 Patient's information can be input
 Historical data can be reviewed and printed
 Built-in rechargeable li-ion battery, AC/DC power conversion
 Sleep mode to save energy and extend LED screen life
 Portable design with hidden handle, convenient to carry
 Multiple language support
 7 level printing thickness can be chosen.
 Adapt to 110-230V, 50/60Hz AC power supply.
 Parameters of fetal monitor:
 Systolic Pressure
 0~100 unit
 Paper speed
 1,2 , 3cm/min(±3%)
 Operation mode
 Manual/ Auto
 Recorder
 High resolution thermal printer
 Specification of Fuse
 T1.6A 250V Ø5×20
 Battery
 Built-in rechargeable Li-ion battery
 Recording paper
 112*100mm Z Fold Thermal Paper
 Machine Size
 307mm×255mm×91mm
