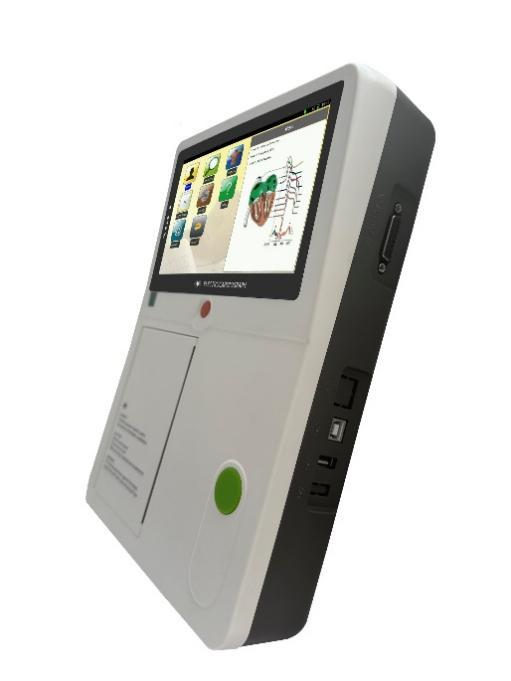

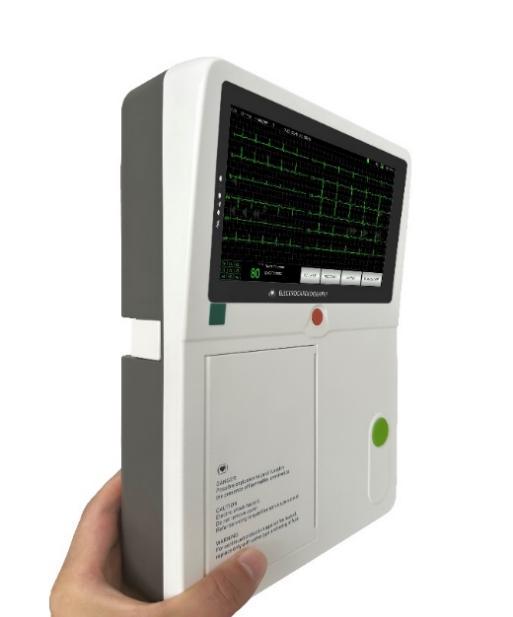

Brand : Shenzhen Medworld
Model : M6

KEY POINTS:
 7" Color Screen
 Touch Operation
 Mass storage Device
 USB & SD Memory
 JPG/PDF Reports
 PC Review & Print
Features:
 6 lead ECG synchronous sampling system.
 Thermal printer with 112mm print paper, synchronization
print.
 5.7'' color touch-screen, both pushbutton and touch operation.

 Automatic measurement, calculation, analysis, waveform
freezing.
 Support USB flash disk & SD memory.
 Data transmitting to PC via RS232/USB.
 Patient's information can be input.
 Historical data can be reviewed and printed.
 Built-in rechargeable li-ion battery, AC/DC power conversion.
 Sleep mode to save energy and extend LCD life.
 Portable design with hidden handle, convenient to carry.
 Lead off & lack of paper detection function.

TECHNICAL SPECIFICATIONS:
 CMRR: ≥ 100dB, with AC Filter
 Input circuit : floating
 Input circuit current: ,≤ 0.1µ A
 Resolution: 12 bit/1000Hz
 Operation mode: Manual/Auto
 Filter: AC. EMG Filter
 Drift filter: Anti-Drift System
 input Impedance: > 50MΩ
 Patient current leakage: < 10µ A
 Specification of fuse: T1.6A 250V Ø5×20
 Calibrating voltage : 1mV± 3%
 Voltage tolerance: ± 500mV
 Time constant: > 3.2s
 Frequent response: 0.05Hz~150Hz
 Noise level: ≤ 15µ Vp-p
 Threshold: ≤ 20µ V

 Paper speed: 12.5, 25, 50mm/s (± 3%)
 Sensitivity: 5，10，20mm/mV
 Recorder: High resolution thermal
 printer
 Battery: Built-in rechargeable Li-ion
 battery 11.1V(4000mAh)
 Recording paper: Thermal recordin paper
 Package: 360mm*250mm*68mm
