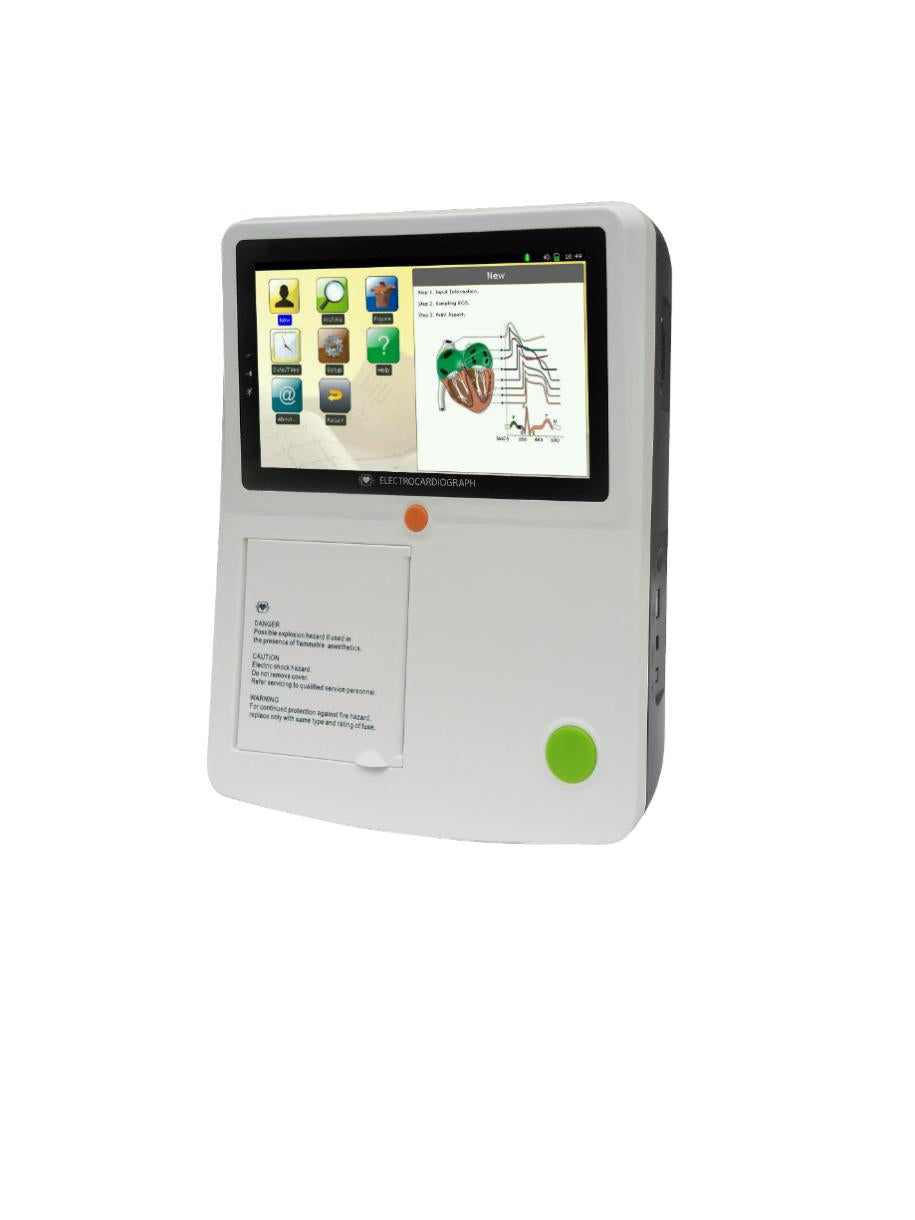

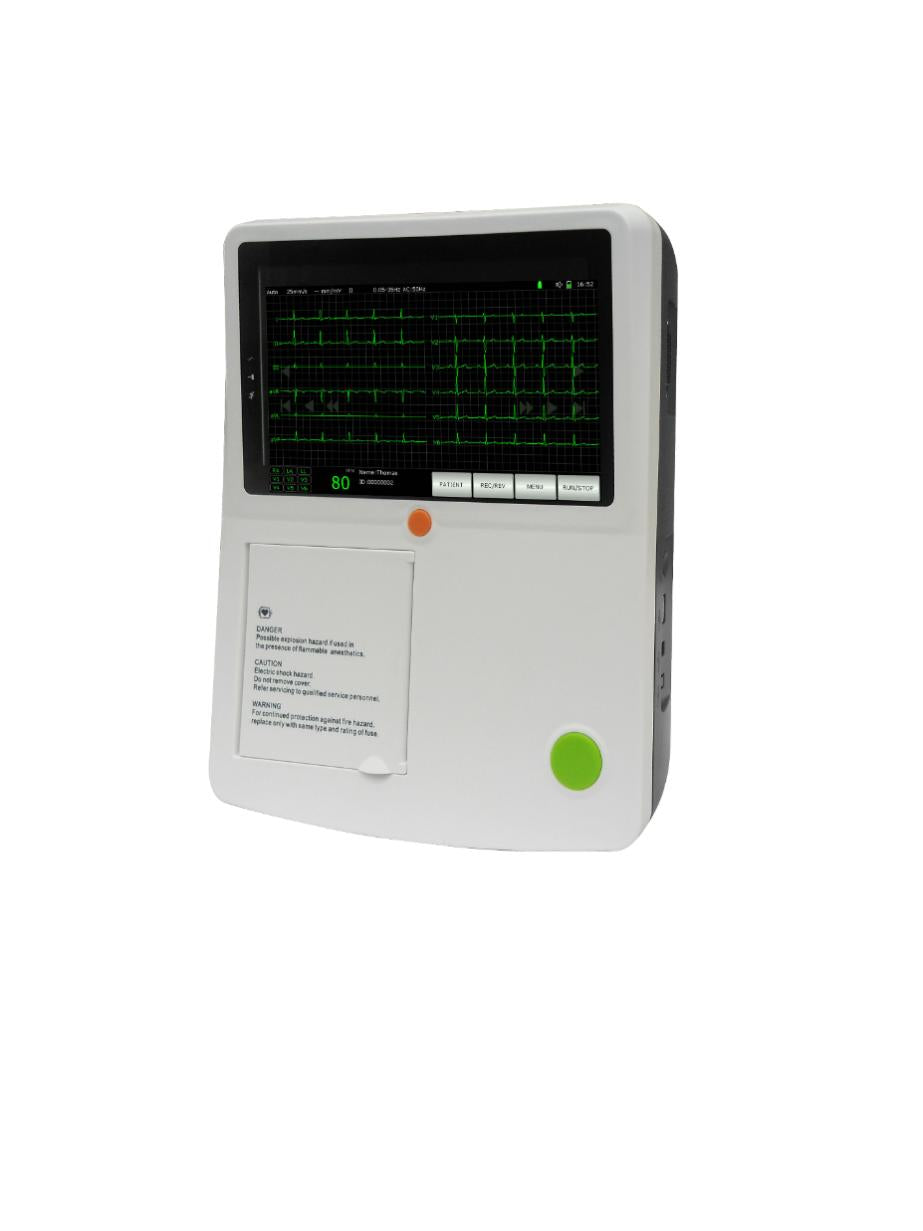

Brand : Shenzhen Medworld
Model : M3

Features:
 Touch mode
 Quick input
 Convenient setting
 Unlimited storage

TECHNICAL SPECIFICATIONS:
 CMRR: ≥ 100dB, with AC Filter
 Input circuit: Floating, Protection
 against defibrillator effect

 Input circuit current: ≤ 0.1 µ A
 Resolution: 12bit/1000Hz
 Operation mode: Manual/Auto
 Filter: AC,ECG Filter
 Drift filter: Anti-Drift System
 Input impedance: > 50MΩ
 Patient current leakage : < 10µ A
 Rated voltage: 100V-230V 50Hz/60Hz
 Recording paper: Thermal recording paper
 Calibrating voltage: 1mV± 3%
 Voltage tolerance: ± 500mV
 Time Constant: > 3.2s
 Frequent response: 0.05Hz~150Hz
 Noise level: ≤ 15 µ Vp-p
 Threshold: ≤ 20µ V
 Paper speed: 12.5mm/s,25，50mm/s (± 3%)
 Sensitivity: 5，10，20mm/mV
 Recorder: High resolution thermal printer
 Battery: Li-ion Battery(11.1V,2200mAh)
 Dimension: 256mm×204mm×66mm
